Backlight module design

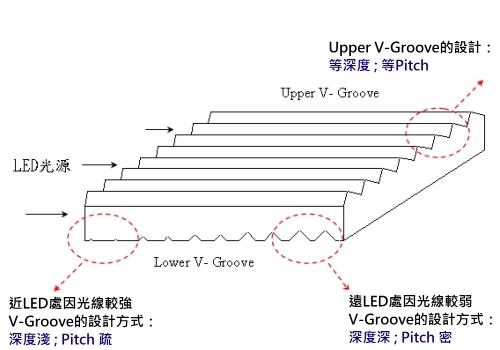

Light Guide 3D

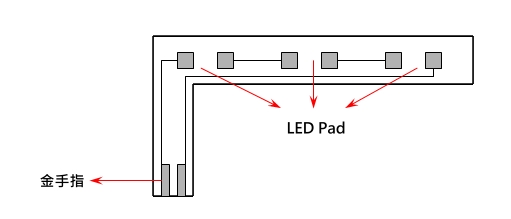

FPC ( LED軟性基板 )

LED Pad： For SMD Type LED Chip soldering.
Manufacturing process of SMT： a. generally b. naught lead

FPC：connects BLU and drive IC
Manufacturing process of FPC：a. Touch up soldering b. Hot bar

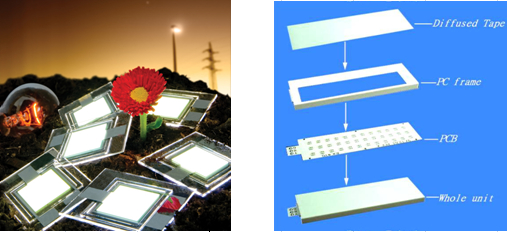

Assembly of Backlight

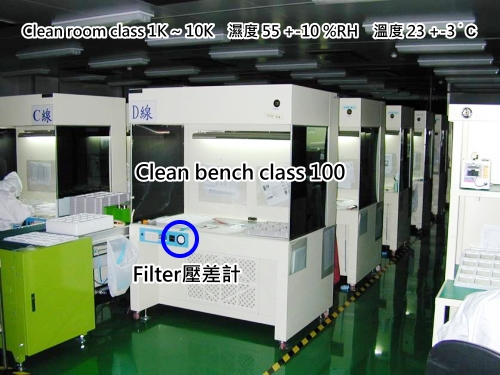

BLU line of production

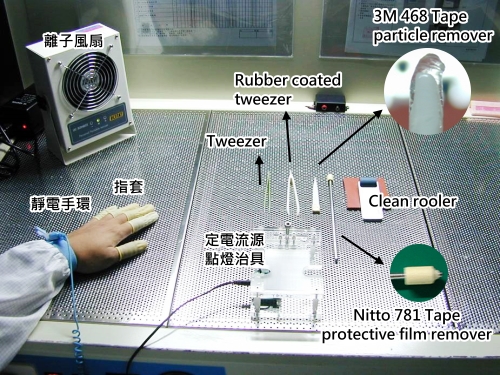

Assembly tool
